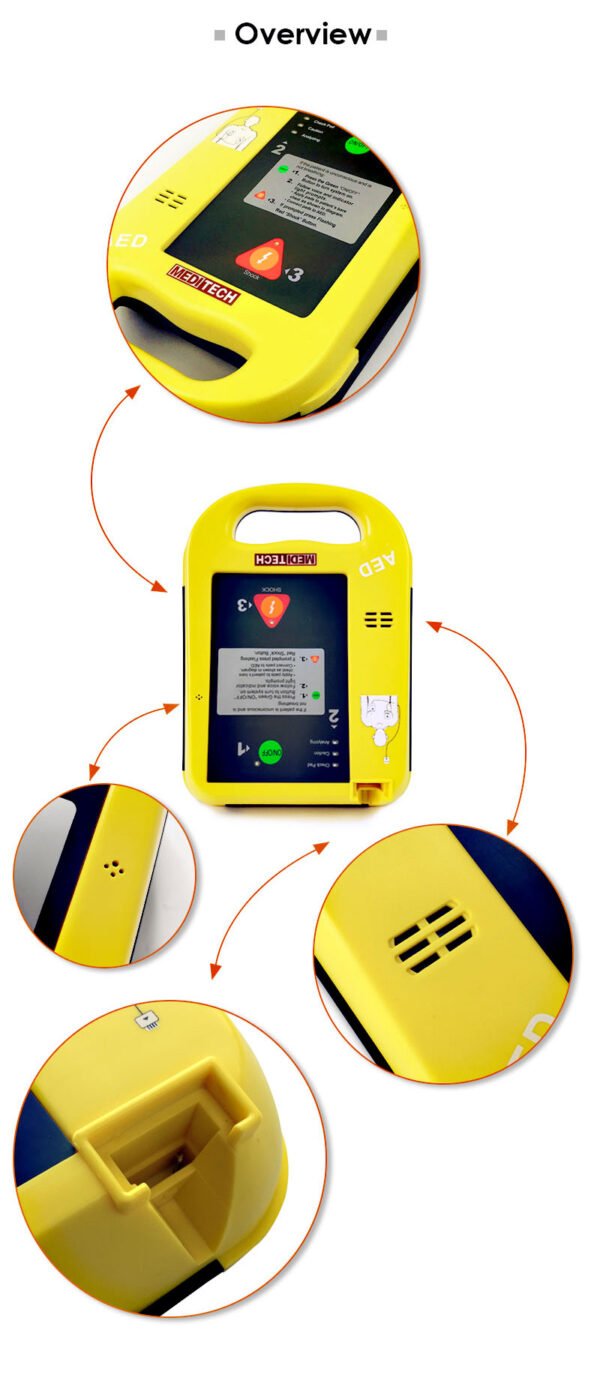

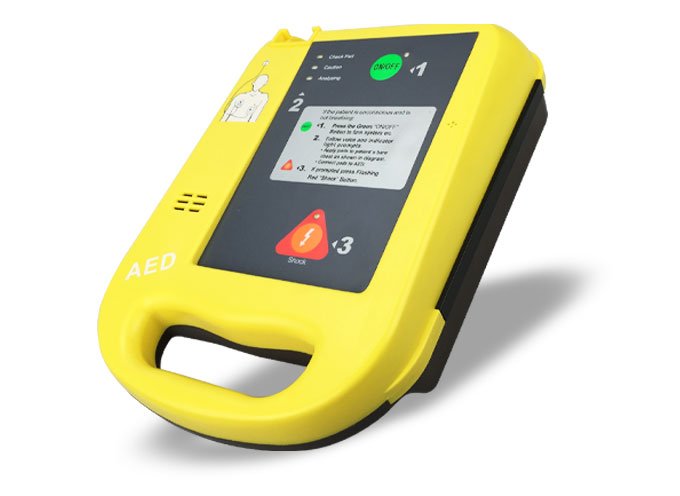

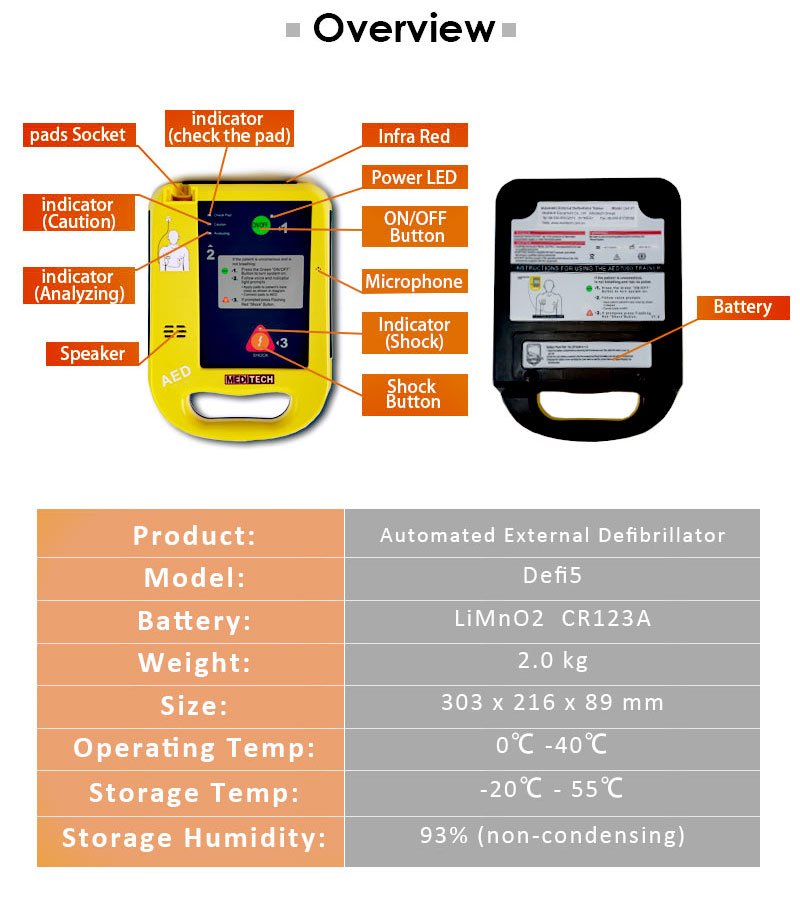

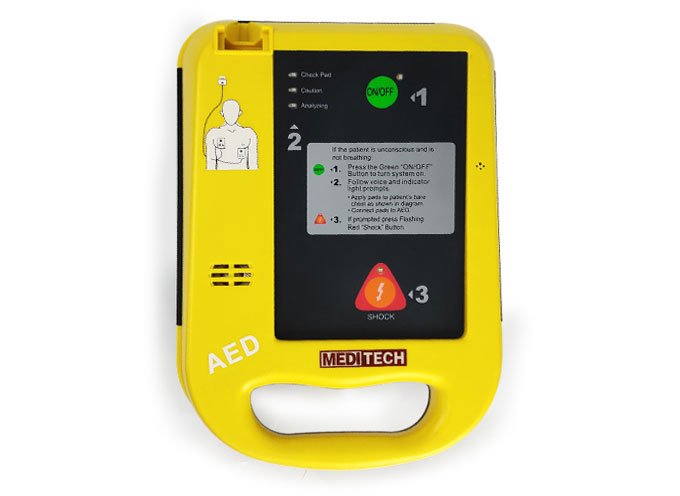

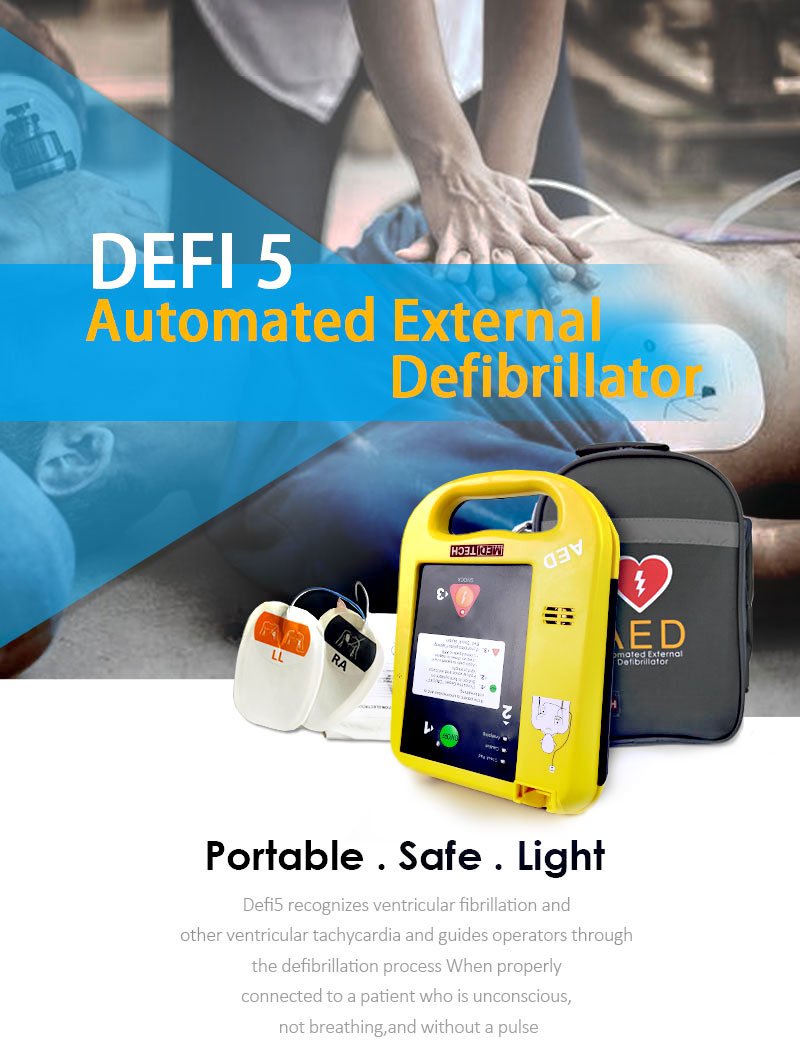

Defi 5 AED with Lock-out Protection to Prevent Inadvertent Defibrillation, Automated External Defibrillator
Original price was: $1,235.00.$1,027.00Current price is: $1,027.00.
FREE SHIPPING! Delivery in 3 Days
Xpress is a defibrillator Monitor with voice alarm which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

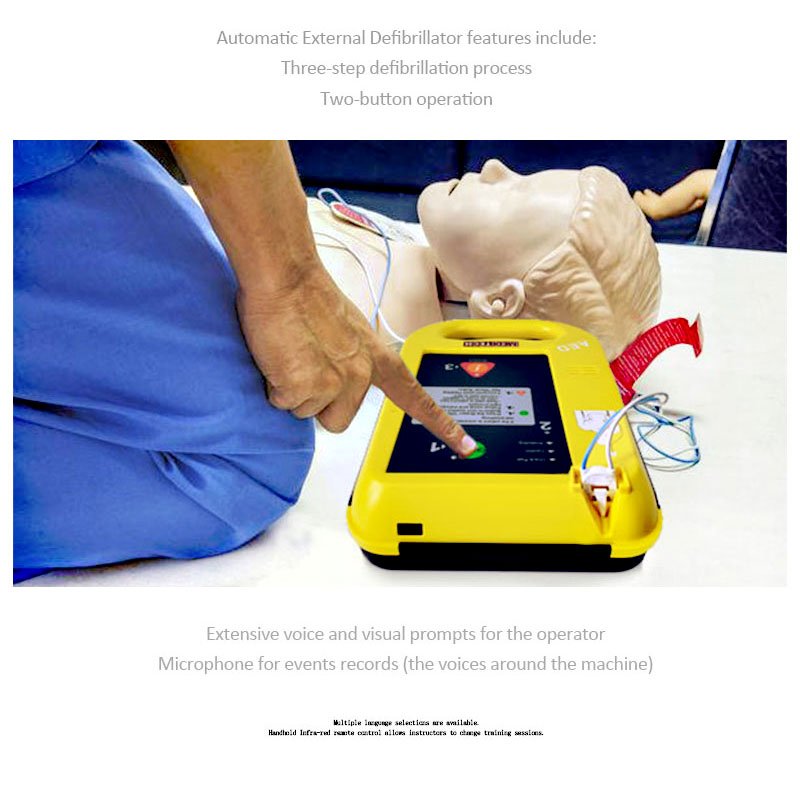

Automatic (Atutomated) External Defibrillator features include:

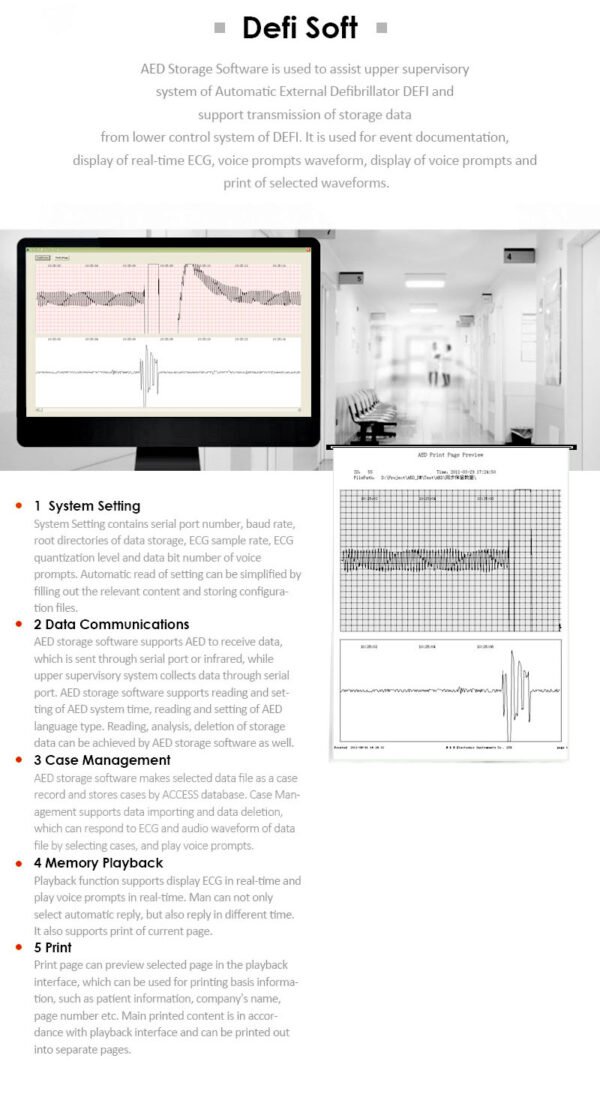

AED Storage Software (Option)
Its used to assist upper supervisory system of Automatic External Defibrillator DEFI and support transmission of storage data from lower control system of DEFI. It is used for event documentation, display of real-time ECG, voice prompts waveform, display of voice prompts and print of selected waveforms.
Physical
| Category | Specification |
| Dimensions | 303 x 216 x 89 mm |
| Weight | 2.0 kg |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | Relative humidity between 30% and 95% (non-condensing) |
| Storage Temperature (without battery) |
-20℃ to 55℃ |
| Storage Humidity (without battery) |
Up to 93% (non-condensing) |
Electrical Isolation
| Category | Specification |
| Power | Unit operates on internal battery only |
| External Electrical Connections | No external devices are attached to the unit |
| Risk Current Category | Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard) |
Defibrillator
| Specification |
| Biphasic Truncated exponential |
| 150, 150, 200J |
| 10 sec. to 150J 15 sec. to 200 J |
| 9 sec. |
| Less than 30 seconds |
| Less than 35 seconds |
| Less than 25 seconds |
| 22 audible prompts |
| LED prompts |
| Two buttons – On/Off, Shock |
| ±15% into any impedance from 25 to 175Ω |
| 20Ω to 200Ω |
Waveform details
The table below provides details of the biphasic truncated exponential waveform delivered by the DEFI5 (set to 200J) when connected to resistive loads of 25 through 175 Ohms. The waveforms are characterized by typical values for peak current (Ip), duration of the first output phase, and duration of the second output phase. Values are within 10%.
| Output Energy (J) |
Patient Impedance (Ω) |
Ip1 (Amps) |
Ip2 (Amps) |
Phase1 (ms) |
Phase2 (ms) |
Interval (ms) |
| 200 | 25 | 53.6 | 36.0 | 5.5 | 3.3 | 0.7 |
| 50 | 27.8 | 17.5 | 10.9 | 6.6 | 0.7 | |
| 75 | 18.2 | 12.0 | 16.3 | 8.9 | 0.7 | |
| 100 | 13.4 | 9.0 | 19.7 | 9.6 | 0.7 | |
| 125 | 10.5 | 7.2 | 20.5 | 11.2 | 0.7 | |
| 150 | 8.6 | 6.0 | 21.6 | 10.4 | 0.7 | |
| 175 | 8.2 | 6.1 | 21.8 | 11.2 | 0.7 |
Standard:

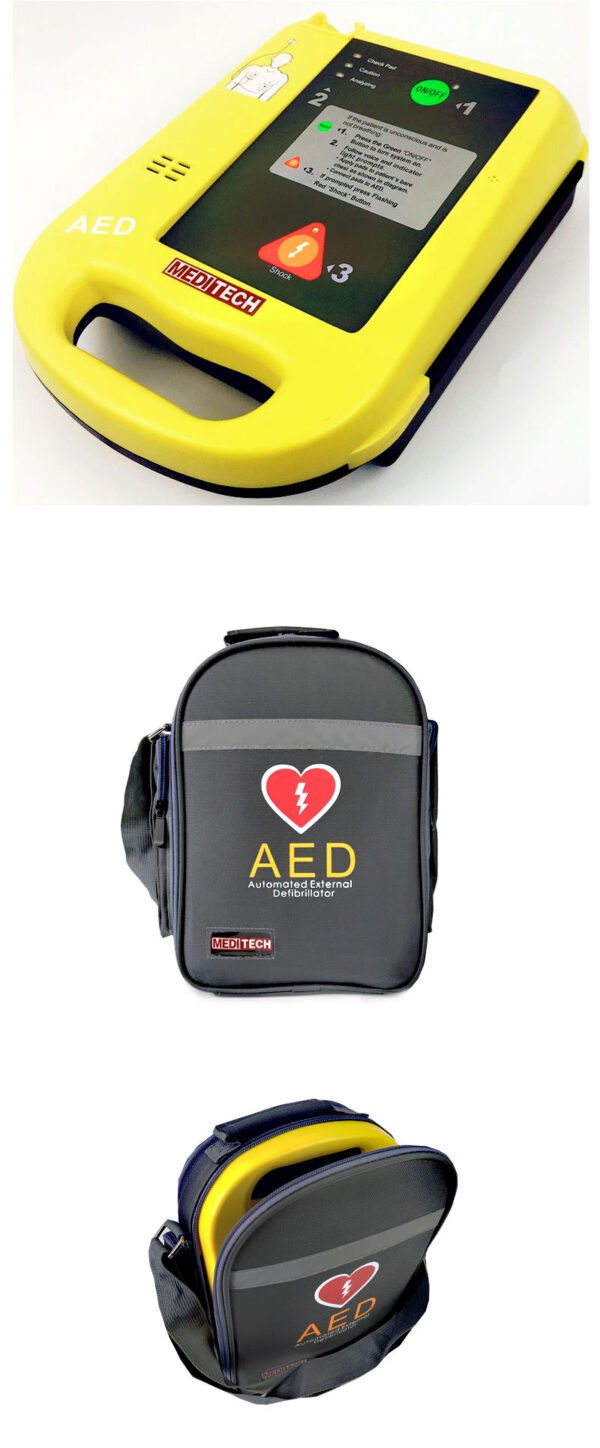

AED Pad ……………….. 1Pcs

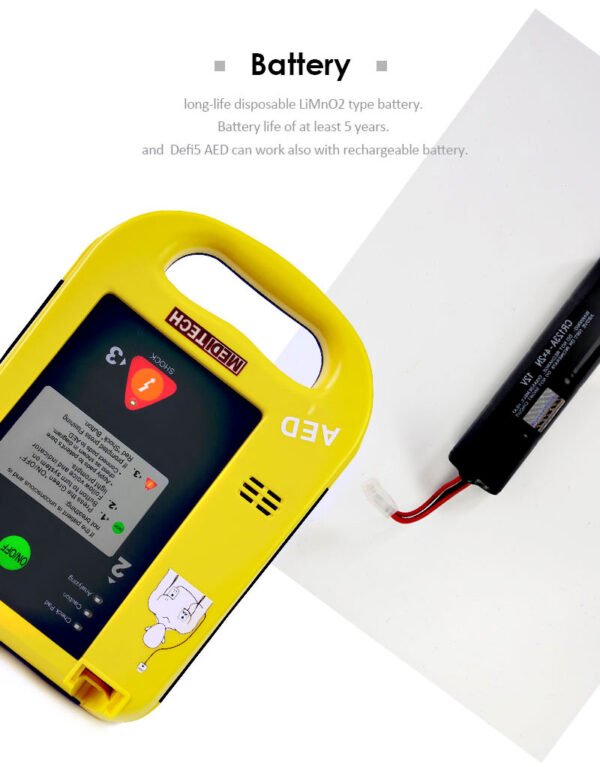

Battery ………………………1Pcs
AED Case …………………. 1Pcs
Cleaning Cloth …………….1Pcs
Options:
AED Pad for Child
AED Cabinet
IrDA USB Adapter for ECG Data transfer
CD Software for ECG Data transfer
Related Products
FREE SHIPPING! Delivery in 3 Days

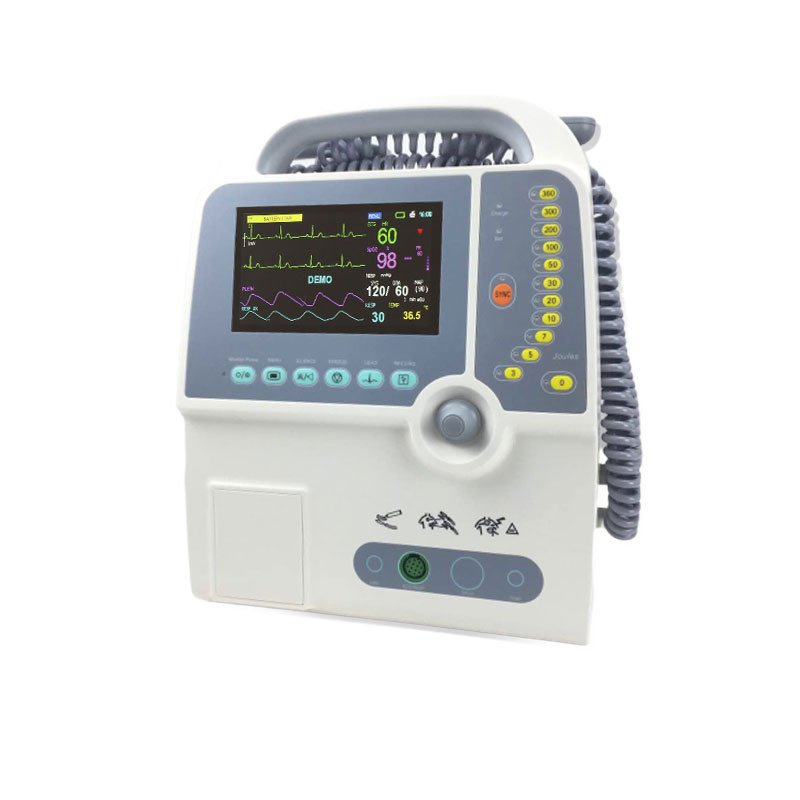

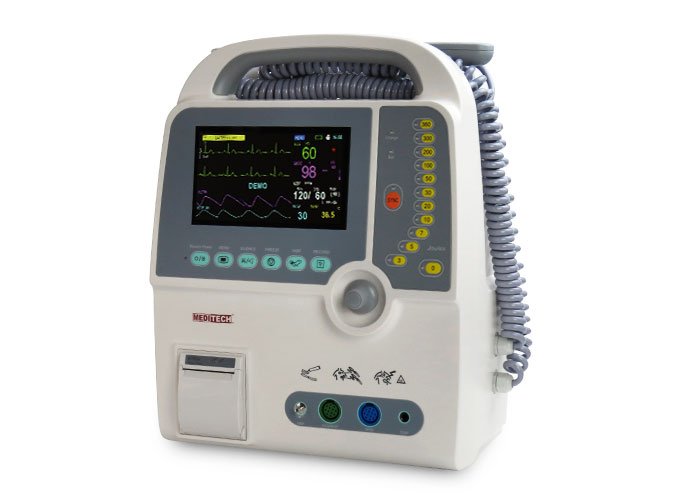

Defibrillator with ECG Monitor, compact, durable, light weighted defibrillator which integrated monitoring,manual defibrillation, AED and pacer(option).
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics.
FREE SHIPPING! Delivery in 3 Days

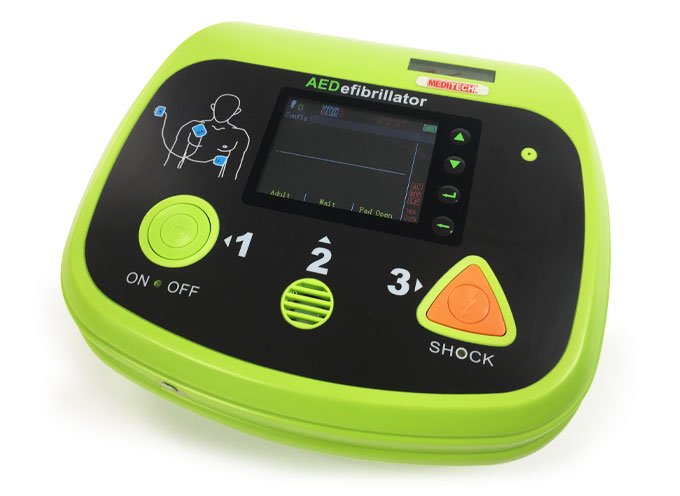

Portable AED which can be equipped at home in public places or in the hospitals. It’s easy and convenient to use when give first-aid to patient.
FREE SHIPPING! Delivery in 3 Days
Defibrillator with ECG Monitor, compact, durable, light weighted defibrillator which integrated monitoring, manual defibrillation, AED and pacer(option).
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics.
FREE SHIPPING! Delivery in 3 Days

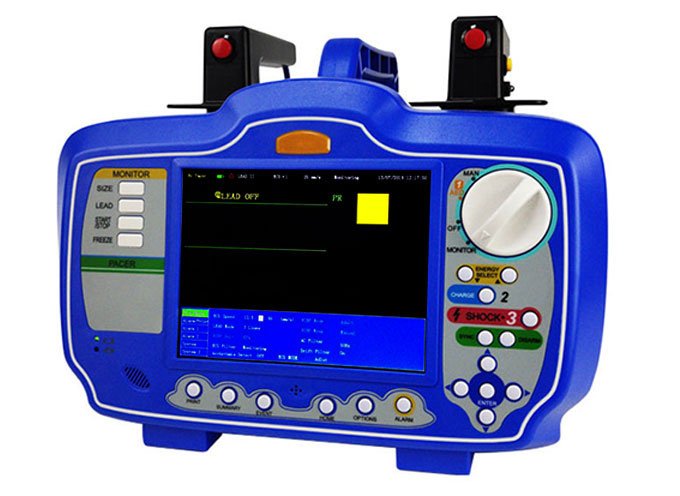

Xpress is a defibrillator Monitor with voice alarm which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
FREE SHIPPING! Delivery in 3 Days

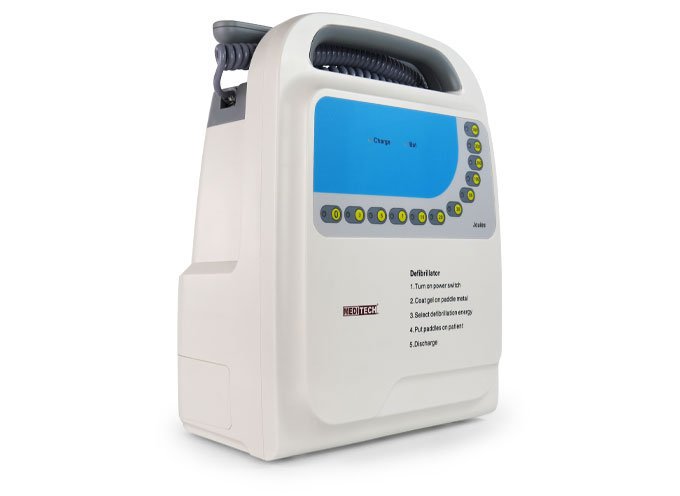

Portable defibrillator, easy operation and simple use, monophasic defibrillator, biphasic defibrillator
FREE SHIPPING! Delivery in 3 Days

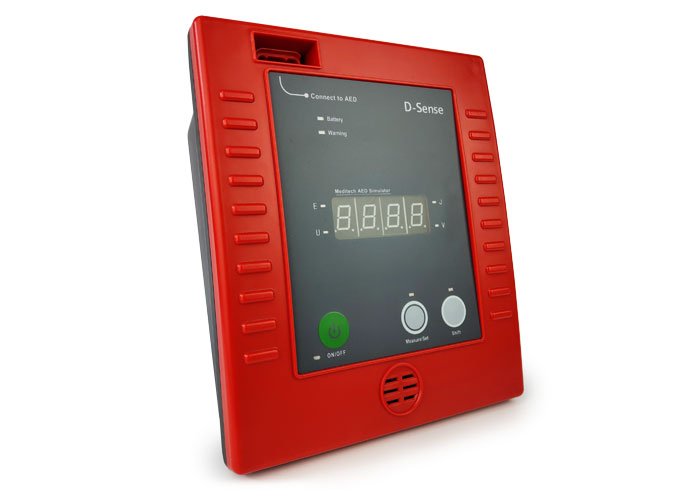

D-Sense® automated external defibrillator analyzer can simulate a variety of normal and abnormal ECG signals for defibrillator testing, test the ability of the defibrillator to analyze ECG signals, and display the defibrillator primary discharge energy and energy via the LED digital tube
FREE SHIPPING! Delivery in 3 Days

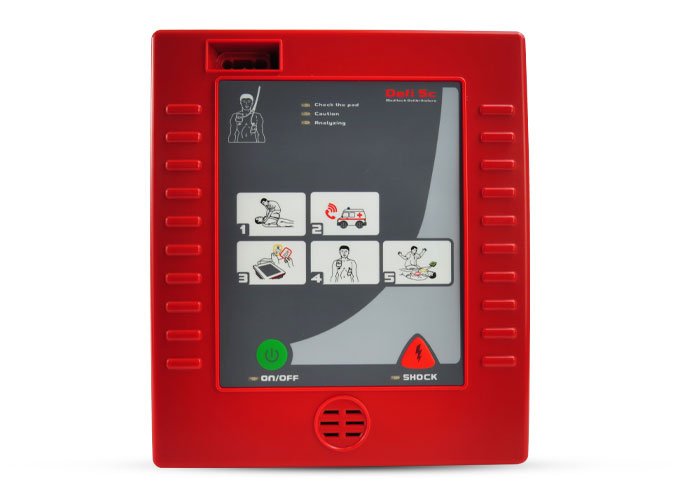

Reliably runs daily self-tests for readiness, Cardiac arrest strikes, Meditech Defi 5C gives you the power to help save a life, safely delivers a shock.
